Industrial Electrical Products

Miniature High Power PCB Relay

• 1 Form A, 1 Form C, 2 Form C versions available
• 5kV Dielectric Strength between contact & coil
• Direct PCB type

Medium Power Industrial Relay

• 2 Form C & 3 Form C Contacts
• DIN Rail Mounting Socket Available
• Free Wheeling Diode Optional

Medium Power Industrial Relay

• 2 Form C & 3 Form C Contacts
• DIN Rail Mounting Socket Available
• Free Wheeling Diode (Optional)

Heavy Duty Power Relay

• 2 Form C and 1 Form Z available
• DIN Rail mounting socket
• Dust Protected

General Purpose Power Relay

• DC & AC Versions available
• Direct Panel Mountable / Din rail Socket mountable
• Dust protected

Heavy Duty Power Relay

• 2 Form C and 1 Form Z versions
• Dust Protected
• Heavy Duty - Rated upto 20A at 220VDC

Heavy Duty PCB Power Relay

• Direct PCB Mountable
• Heavy duty
• Immersion cleanable version available

Miniature Industrial PCB Relay

• Compact Design
• Dielectric upto 1200VRMS
• PCB Mountable

Miniature Power PCB Relay

• Creepage distance 8 mm
• Direct PCB type
• International Standard Foot Print

Heavy Duty Relay

• 6.3mm Flat Terminals
• Dual Contacts
• Limiting Continuous Current upto 70A

Heavy Duty Relay

• 9.5mm Flat Contact Terminals
• Dual Contacts
• Limiting Continuous Current upto 100A

Miniature Power PCB Relays

• Compact High Performance
• Direct PCB type
• Rated upto 6A

Miniature Power PCB Relay

• Dust protected/ sealed Version
• High Capacity up to 16amps@230VAC
• International standard foot print

Sub Miniature PCB Power Relay - Sugar Cube Relay

• High Capacity rated upto 10A
• High Sensitivity Low Profile
• International standard Foot print

Power Relay

• 6.3mm Flat Terminals
• Limiting Continuous current upto 60A
• Multiple Contact options available

HVDC Power Relay

• 1 Form A & 1 Form C Configurations
• 6.3mm Flat terminals
• Current Rating upto 25A

High Current Power Relay

• 1 Form A Type relay
• Contact Rating upto 100A
• IP67 Enclosure

High Current Power Relay

• 1 Form A type relay
• Contact Rating upto 200A
• IP67 Enclosure

Miniature Power Relays

• Flange mounting version available
• LED / Free wheeling diode/ Polarity protection diode (Optional)
• Lockable test button (Optional)

Heavy Duty Power Relays

• 2 Form A version
• Comply to IEC 60255-5
• Din rail mounting socket

ICB Cube Style Industrial Relay

• Dinrail Mountable Sockets available
• Lockable Test Button
• Rated for 6A at 24VDC/ 230VAC

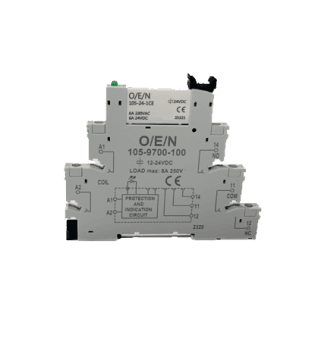

Slim line Relay - 6mm Width - Subminiature Power Relay

• 1 Form C Configuration
• DIN Rail Socket with Protection & Indication Circuit
• Rated for 6A at 230VAC/24VDC

Panel Mounting (96x96mm)

• Digital Microprocessor / Microcontroller based compact design
• Continuous monitoring and display of set value and measured leakage current
• 8-character 2-line backlit LCD display

Panel Mounting (96x96mm)

• High-sensitivity tripping starting from 30mA for human safety
• Digital LCD display with real-time leakage telemetry
• Microprocessor controlled instantaneous and inverse time curves

Panel Mounting (96x96mm)

• Ultra-wide detection band: 30mA to 30A across 10 selectable steps
• Microcontroller core with digital calibration
• Multi-line backlit readout showing healthy / faulted status

Panel Mounting (96x96mm)

• Configurable current trip setpoint: 300mA to 30A
• High harmonic rejection algorithm with True RMS sensing
• Comprehensive CBCT circuit integrity check

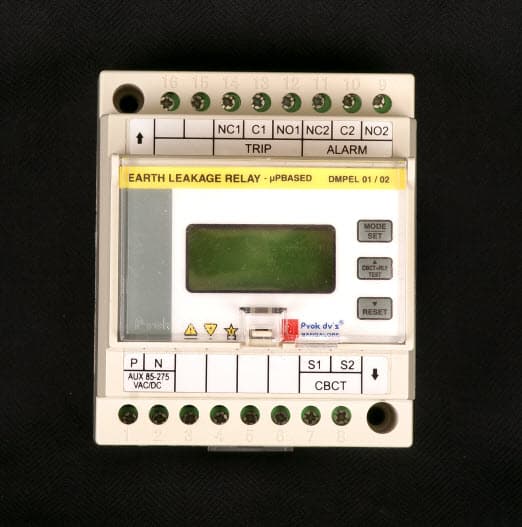

DIN Rail / Base Mounting

• 35mm DIN-rail or base mounting format for modular control cabinets
• Bright digital LED display for current readout and parameter set-up
• 300mA to 30A wide adjustment span with high resolution

DIN Rail / Base Mounting

• Standard 35mm DIN-rail installation
• High sensitivity range starting from 30mA
• Clear digital multi-segment readouts

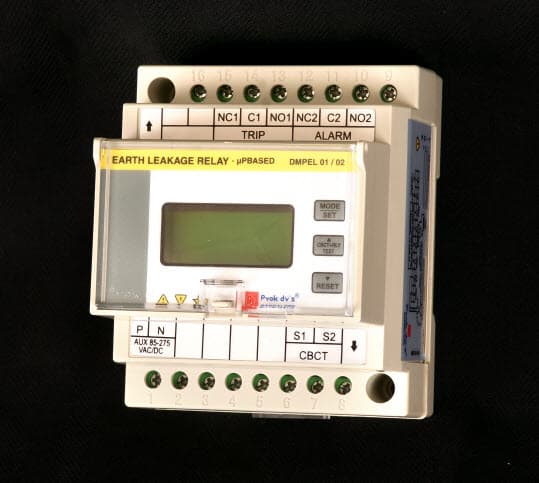

DIN Rail / Base Mounting

• Universal current range: 30mA up to 30A in a single DIN rail unit
• Microprocessor intelligence with digital noise filtration
• Front push buttons for intuitive menu setting and diagnostics

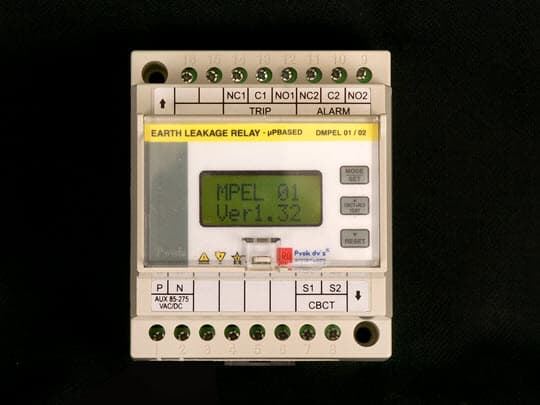

DIN Rail / Base Mounting

• 300mA–30A rating tailored for heavy industrial loads
• DIN rail modular chassis with robust screw terminals
• Digital time-delay adjustments from 0.05 to 5.0 seconds

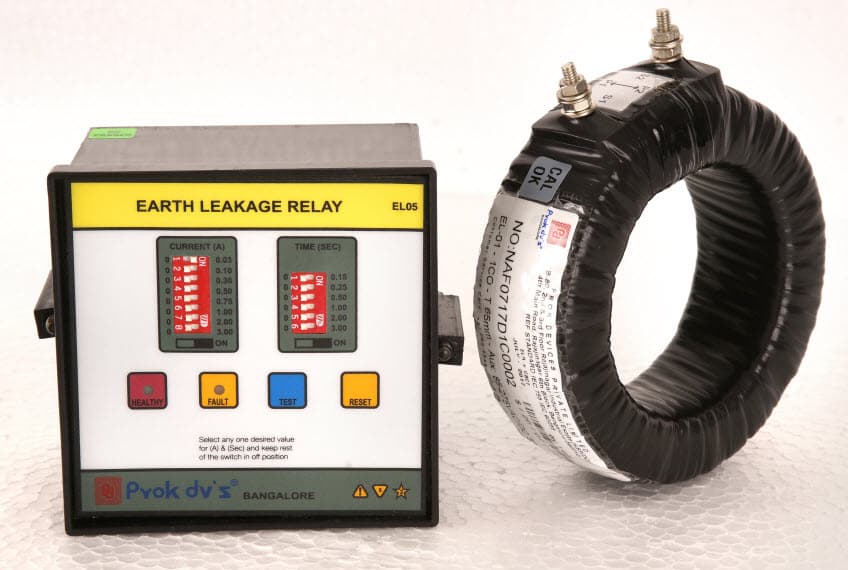

Flush Panel Mounting (72x72mm / 96x96mm)

• Step-switch calibration from 1A to 8A
• Time delay selectable from instantaneous to 3.0 seconds
• Manual and electrical remote reset capabilities

Flush Panel Mounting

• Sensitive 30mA to 300mA threshold range
• Rotary calibrated selector switches for quick commissioning
• Clear LED indication of power, fault, and trip state

Flush Panel Mounting

• Calibrated current setting: 300mA to 3000mA
• Adjustable trip duration curves
• Fail-safe output relays with 1 NO + 1 NC contacts rated 5A 240VAC

Flush Panel Mounting

• Targeted 1A to 4A range with fine graduations
• Solid-state precision sensing with immune noise filtering
• Front test push-button for testing breaker shunt coil trip action

Flush Panel Mounting

• Broad 30mA to 3000mA spectrum for flexible substation commissioning
• Multi-range multiplier switch
• High thermal endurance and vibration resistance

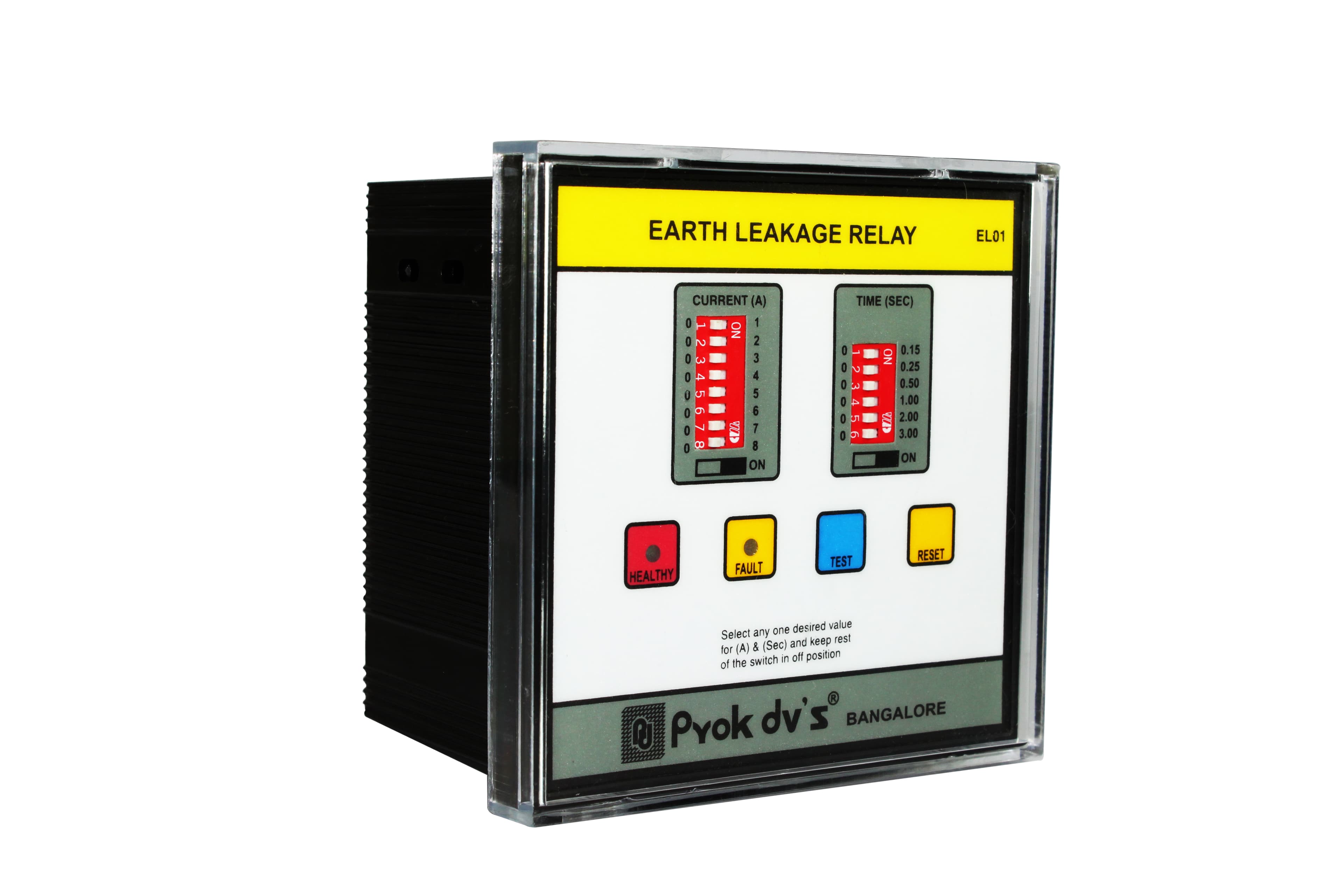

Flush Panel Mounting

• 1A to 10A high threshold to prevent false trips on lengthy cable runs
• Harmonic restraint technology
• Reliable mechanical latch or self-resetting modes

Flush Panel Mounting

• 4A to 12A current band
• Built-in surge suppression across power and sensor inputs
• Heavy-duty industrial terminal blocks

Flush Panel Mounting

• Custom fine-tuned 50mA to 2000mA range
• Precise analog-to-digital calibration bridge
• Industrial grade componentry rated for up to 60°C ambient

DIN Rail Mounting (35mm)

• Standard DIN Rail clip-on mounting
• 1A to 8A selectable sensitivity
• Direct interlock with contactors or MCCB shunt trip units

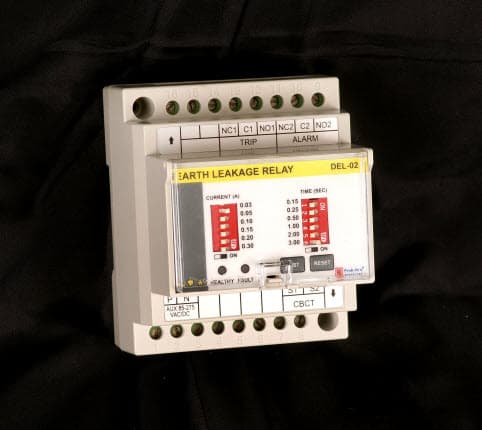

DIN Rail Mounting (35mm)

• 30mA to 300mA sensitive detection
• Compact DIN standard width
• Front potentiometer for tripping value selection

DIN Rail Mounting (35mm)

• 300mA to 3000mA range for equipment fire protection
• Vibration-proof spring clamps / screw terminals
• LED indicators for power healthy and trip

DIN Rail Mounting (35mm)

• 1A to 4A setting range
• Adjustable time delay (instantaneous to 3 sec)
• Compatible with Prok core balance current transformers

DIN Rail Mounting (35mm)

• Covers 30mA through 3000mA in multi-scale steps
• Snaps onto standard 35mm DIN rail
• Push-to-test and manual reset button on front

DIN Rail Mounting (35mm)

• 1A to 10A current range
• True RMS filtering eliminating harmonics from variable frequency drives (VFD)
• Compact DIN package

DIN Rail Mounting (35mm)

• High 4A to 12A sensitivity rating
• Transient surge protection up to 4kV
• Rugged industrial terminals

DIN Rail Mounting (35mm)

• Flagship 30mA to 30A ultra-wide setting span
• Multi-range rotary dial with precise steps
• Adjustable trip time delay from 0.05 to 5.0 seconds
